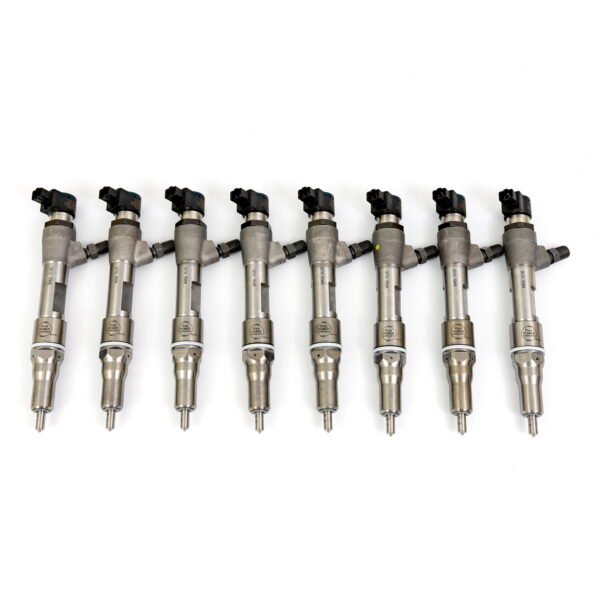

S&S 2008-2010 Powerstroke Injector set

*2-3 WEEKS LEAD TIME*

Description

S&S Upgrades

• Proprietary nozzle honing process for clean and consistent holes
• Nozzles flow-matched to 1% variance per set, using OE standards
  • Viscor SAE-J967
  • 40 degrees C
  • 100 bar
• Injectors flow-matched to 3% variance per set
  • Viscor SAE-J967
  • 40 degrees C
  • 4 different pressure/energizing points per injector
  • Injection profiles (rate shape) aligned
• Injector build spec custom-matched to nozzle flow rate for each size, which includes internal modifications (piezo mod)

Options

• The industry has adopted a % increase in nozzle flow over stock as the sizing convention
  • Available sizes: Stock, 30%, 45%, 60%, 80%, 100%

Core returns required for 6.4L Ford injectors – $150 charge if no core returned.
